Product information "Minus Pad 8 - 2 pcs. - 120 x 20 mm - 0.5 mm"

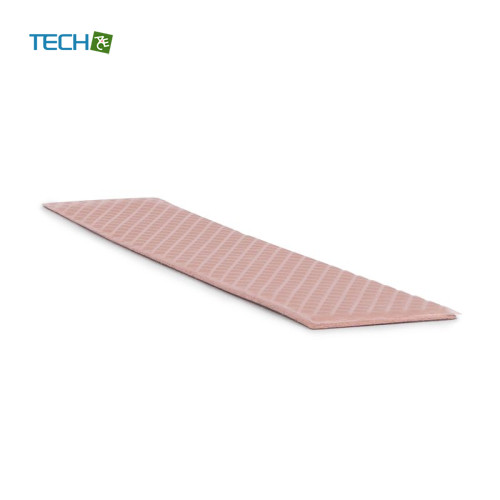

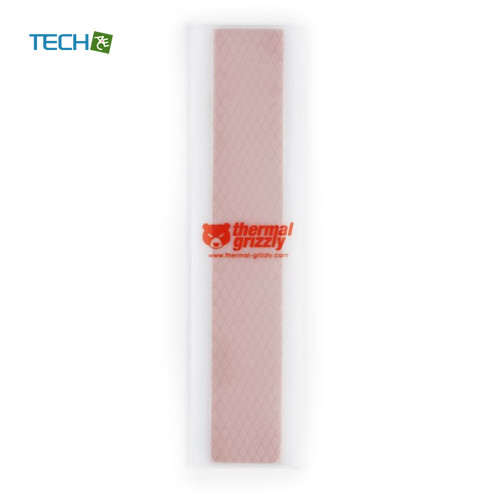

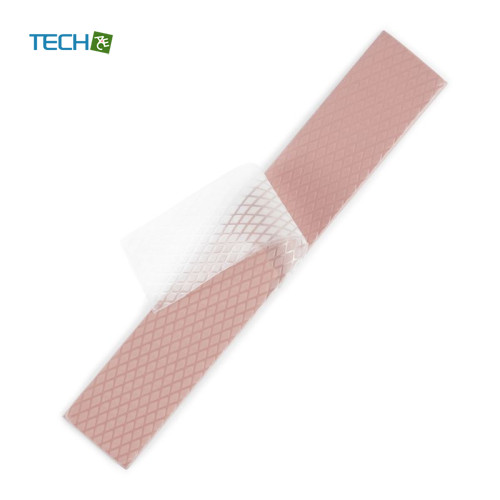

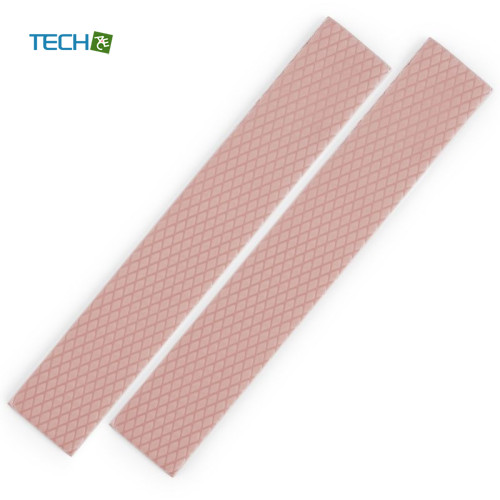

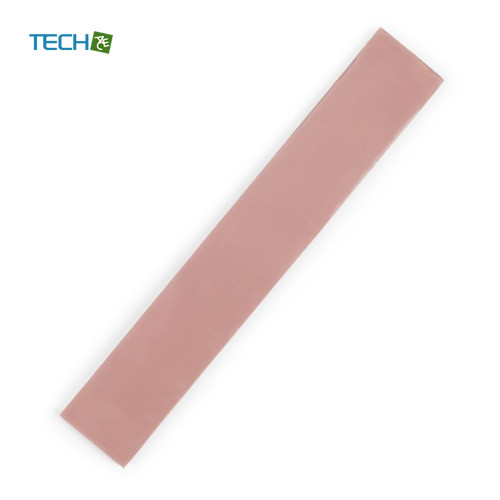

The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of  a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses.

The easy to process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer.

The lightest of touches is enough to attach them optimally. All pads are ecofriendly and RoHS-compliant.

  • High thermal conductivity
  • High compressibility
  • Electrical insulation

The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.

Color: pink
Degree of hardness: Shore 00-60
Electrically insulating: Yes(8KV/mm ASTM D149)
Flammability: V-0
Operating temperature: -100°C to +250°C
The high-performance heat-conducting pads of the minus pad 8 series have a very elastic and adaptable surface with very high thermal conductivity. Even the smallest component differences can thus be compensated very well.
